Automatic palletizing equipment

Home > Logistics robot > Automatic palletizing equipment

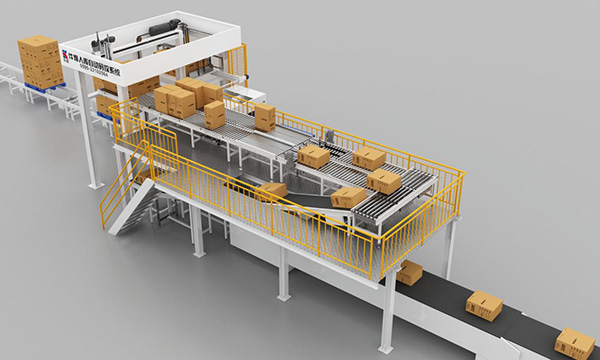

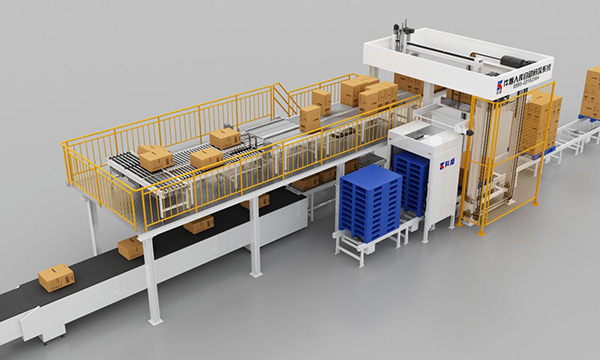

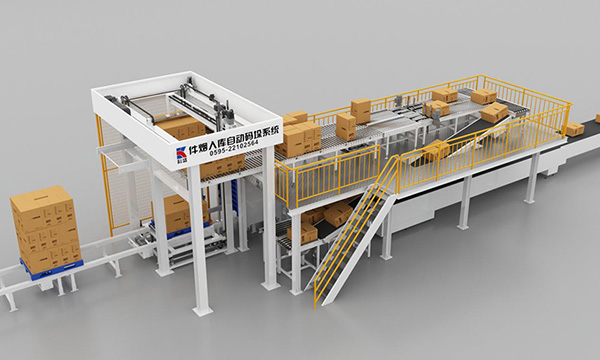

Automatic palletizing for cigarette storage is used in the warehouse storage process, which is connected to the telescopic belt conveyor (or unloading equipment). After unloading and scanning the code, the cigarettes are transported, transplanted, flipped, differentially adjusted, grouped, cached, and stacked. After palletizing is completed, they are conveyed to the pick-up port or the warehouse pick-up platform through a pallet conveyor line, and the equipment adopts mechanical stacking method.





Technical Parameter

When palletizing standard cigarettes, efficiency, piece/h	≥800
When palletizing shaped cigarettes, efficiency, piece/h	≥800
Conveying speed, m/min	30、48
Stacking conveyor lifting speed, m/min	48
Conveyor speed of tray conveyor, m/min	18
Tray code sorting efficiency, per/min	4
Noise, dB(A)	≤75
Compressed air consumption, m³/min	0.5
Total power consumption, kW	30
Cigarette box specifications（L×H×B）,mm	280～590×400～540×225～350
Compressed air pressure, MPa	≥0.7
Power supply	Three phase five wire system, 380V/50Hz
Dimensions（L×W×H）mm	According to the site conditions, please refer to the layout diagram for details
Cigarette inlet height，mm	1100(customizable)
Tray exit height, mm	650(customizable)
Entrance height of empty tray group, mm	650(customizable)

Core advantages

Efficient palletizing	1. Standard cigarette box palletizing efficiency ≥ 1000 pieces/hour, irregular shaped parts ≥ 800 pieces/hour, and dismantling speed ≥ 4 pallets/minute. 2. The entire process is automated, supporting 4-5 layers of stacking and significantly improving production efficiency.
Widely compatible	1. Suitable for various cigarette box specifications (any combination of 280mm~590mm × 400mm~540mm × 225mm~350mm). 2. Supports stacking more than 10 different volume cigarette boxes, with strong compatibility and meeting diverse needs.
Intelligent and flexible	1. Dynamically adjust the placement strategy and homework sequence, supporting multiple stacking methods for standard parts (3-2-3-2) and irregular parts (4-2, 3-3, etc.). 2. Visual operation interface, real-time monitoring of production data and equipment status, supporting manual debugging and manual intervention modes.
Stable and reliable	1. Modular design, key components (conveyor belt, smoke pushing mechanism) are easy to disassemble and replace, and maintenance is convenient. 2. Equipped with safety diagnosis, interlock protection, and alarm functions to ensure safe operation.
Data association	1. Seamless integration and control system for operational data, supporting secondary development and in-depth analysis, and assisting in digital management. 2. Full lifecycle monitoring provides data support for preventive maintenance.

The cigarette stacking types of the automatic palletizing equipment are as follows:

No.	Type	Pack	Specification（mm）	Stacked layer height	Picture
1	3-2/2-3 type	10 pieces per layer	Size rule: L≤500，W≤250	Fine tuned by the weight and height of each cigarette
2	3-3 type	6 pieces per layer	Size rule: L≤416，W≤500	Fine tuned by the weight and height of each cigarette
3	4-2 type	6 pieces per layer	Size rule: L≤687.5，W≤312.5	Fine tuned by the weight and height of each cigarette
4	3-2 type	5 pieces per layer	Size rule: L≤584，W≤416	Fine tuned by the weight and height of each cigarette
5	S type	On site agreement	other	\	\
